Continuous Fiber Tailoring (CFT)

Continuous Fiber Tailoring at Fraunhofer IGCV

Carbon fiber reinforced plastics (CFRP) have an excellent lightweight construction potential. In the automotive industry, steady growth in the use of these materials for structural components can be expected due to the associated fuel savings or increase in driving range (e-mobility) and driving ability. However, the production is very costly since, depending on the component and production process, production involves a high proportion of material waste and the use of very cost-intensive semi-finished fiber products.

Another limiting factor is the automation of the manufacturing processes. Especially for preform LCM processes used extensively in the automotive industry, preforming is often associated with a high workload since the starting material must be cut, oriented, and stacked. The preform is the near-net-shape, 3-dimensional, and dry reinforcing structure, impregnated in an infiltration process. Preforming can account for up to 50% of component costs, which means that this process step offers great potential for process efficiency and reduced overall component costs. For this reason, the Fraunhofer IGCV has developed the Continuous Fiber Tailoring process, which enables the cost-effective and highly automated production of near-net-shape preforms for the high-volume use of CFRP structures.


The technology behind Continuous Fiber Tailoring

For the cost-effective and automated production of near-net-shape preforms through continuous fiber tailoring, several parallel rovings adapted to the component size are first drawn off from a creel and spread to a homogeneous width with a defined weight per unit area. A specially developed conveying and cutting system feed the spread fibers individually at high speed to a continuously running conveyor belt. Conveying and cutting are carried out according to the two-dimensional unwound geometry of the component to be produced (including possible cut-outs) and the intended fiber orientation as unidirectional (UD) layers. A binder material is applied and activated on the conveyor belt, fixing the individual rovings in their position relative to each other. The binder-fixed UD layers produced can then be absorbed by the running conveyor belt using a pick and place process, stacked by rotation according to the layer structure, and formed three-dimensionally.

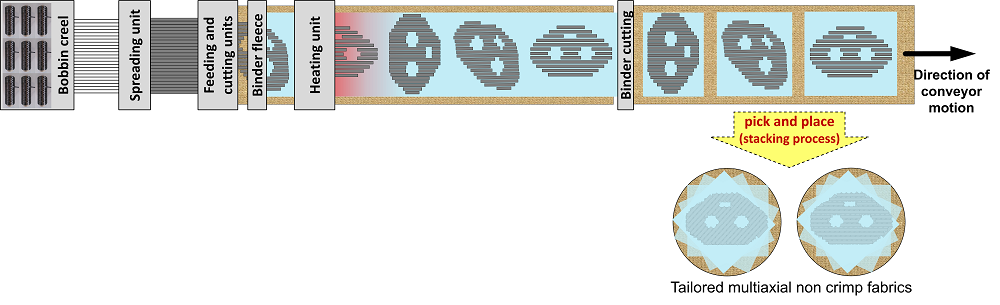

Schematic illustration of machine concept
© Fraunhofer IGCV
Schematic illustration of machine concept

State of research

Within the frame of the project HErzSchLag, funded by the German Federal Ministry of Education and Research BMBF (funding code: 03VP00770), a laboratory-scale pilot plant for the validation of the plant concept was set up, and technology maturity level (TRL) 4 was achieved. The following features characterize this:

  • Automated generation of machine data from two-dimensional CAD-data
  • Automated manufacturing of the individual layers according to the implemented machine data
  • Arbitrary laying patterns depending on the desired fiber orientation
  • Maximum laying width of 600 mm and simultaneous processing of up to 30 rovings
  • Inline binding and activation to fix the individual layers
  • Process speed of up to 0.2 m/s for layer production

Extensive material and process engineering investigations were carried out at the laboratory level to compare the novel CFT semi-finished product with a conventional UD fabric. Similar forming behavior, as well as an improved impregnation behavior in the RTM process, was found. Also, tensile tests showed an almost 25% increase in tensile strength than a comparable conventional material, and ILSS tests showed an increase in interlaminar shear strength of more than 15%.

The implemented pilot plant will be continuously optimized concerning process stability, achieved process parameters, and quality aspects. In further projects, the plant's application range will be extended and specified in cooperation with industrial partners.

Continuous Fiber Tailoring (CFT): Research Project HErzSchLag

  • The machine data is automatically generated according to the desired component geometry and the desired fiber orientations in the first step. These are then fed into the plant control system so that the individual layers can be produced automatically by the plant's conveyor and cutting system. When designing the layers, recesses can be made to minimize post-processing and the resulting material waste.

  • The individual layers of the component are produced in the next step. The plant can process different types of fibers and different binder systems. Thus it is possible to produce individual semi-finished products according to the respective customer requirements. The maximum width of a single layer is limited to 600 mm at the plant's current state. The minimum length of a roving section is 90 mm.

  • The stacking process is not yet automated at this stage and is therefore still carried out manually.

  • A heatable forming press with a maximum press area of 860 mm x 600 mm and a maximum press force of 1370 kN is available for preforming. Alternatively, the preform production can be done manually.

  • The manufactured preforms can then be impregnated using RTM or vacuum infusion processes. For the RTM process, the heatable molding press and a mixing and dosing unit are used. This allows the injection to be carried out in the low-pressure range up to a maximum of 20 bar. Alternatively, the preform can be impregnated using the VAP or VARI process. Depending on the desired requirements, a wide variety of resin systems are available as a matrix for impregnation.

  • For the characterization of material and component properties, the Fraunhofer IGCV has extensive measuring and testing instruments at its disposal. Due to the existing equipment and the broad know-how in the field of testing of FRP, we can analyze a wide range of material and component parameters.

    Equipment in the field of measurement and testing technology.

  • The Fraunhofer IGCV has both the process knowledge and the experience in cost and life cycle assessment to evaluate economic efficiency, sustainability, and energy efficiency to answer your questions reliably.

  • The pilot plant set up at the Fraunhofer IGCV is continuously being optimized and expanded. Furthermore, the plant's application range is to be expanded and specified in cooperation with industrial partners within the framework of research projects or bilateral cooperation.
